کد محصول :

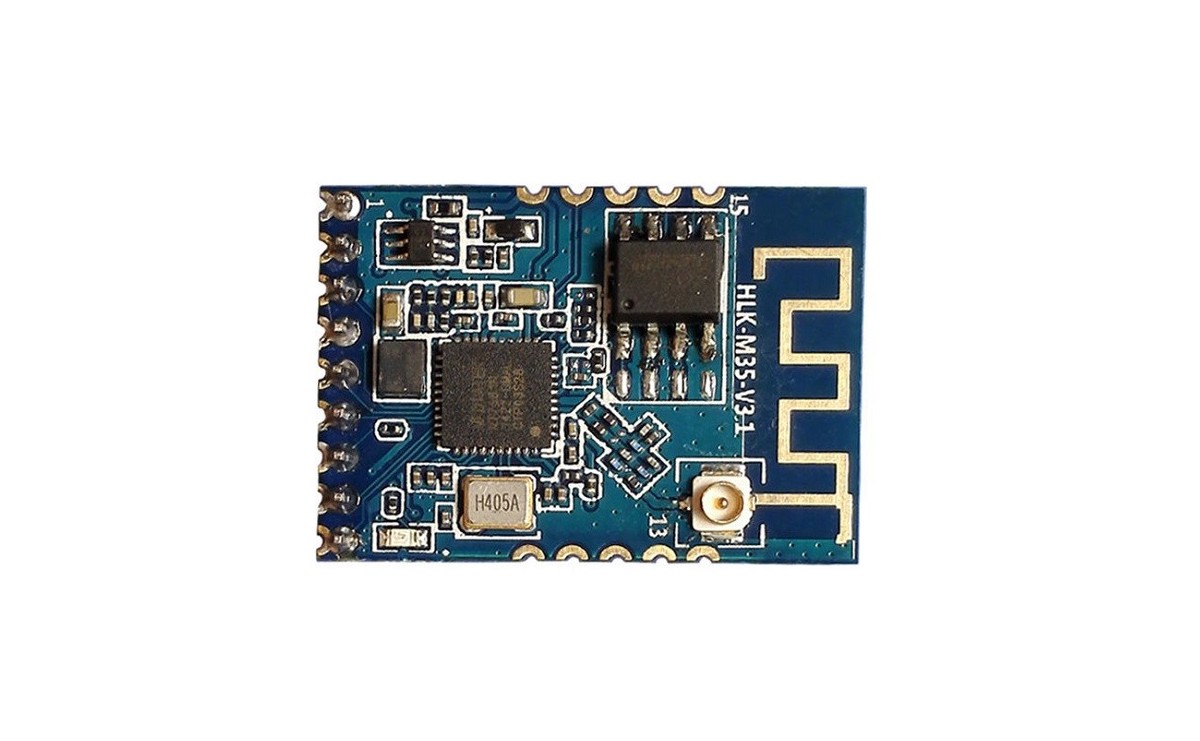

ماژول HLK-M35
وضعیت : موجودماژول HLK-M35 سریال به وای فای Serial WIFI
قیمت : 42,240 تومان
محصولات مشابه
مشخصات
ماژولها
| مشخصات فنی | مبدل سریال به WI-Fi با حداکثر نرخ داده ی 150Mbps |
توضیحات بیشتر
The Advantage of this module:
1. Super Mini Size,Dimension :18mm×25mm×2.5mm
2. Low-power consumption
3. Support 802.11 b/g/n protocol
4. Support multiple security authenti-cation mechanisms: WEP/WPA-PSK/WPA2-PSK/TKIP/AES and so on.
5. No driver requirement, can be used as a normal serial port to user’s MCU
6. Support AP/STA mode
7. Support TCP Server/TCP Client/UDP Server/UDP Client operation mode
8. Support DHCP DNS HTTP advanced application layer protocol
9. Support AT Command
10. Support find module by searching the protocol in LAN
11. Support SmartLink function, Use APP Control Module to connect with ordinary wireless router
12. CE/FCC,ROHS Certification
Technical Specifications
Mechanical Dimensions
Typical Circuit:
Function and Application:The handheld device
Remote control
The consumer electronics
IOT systems
Industry systems
Portable wireless communication product
Medical equipment
Led control
Sensor network application
Wireless printer
