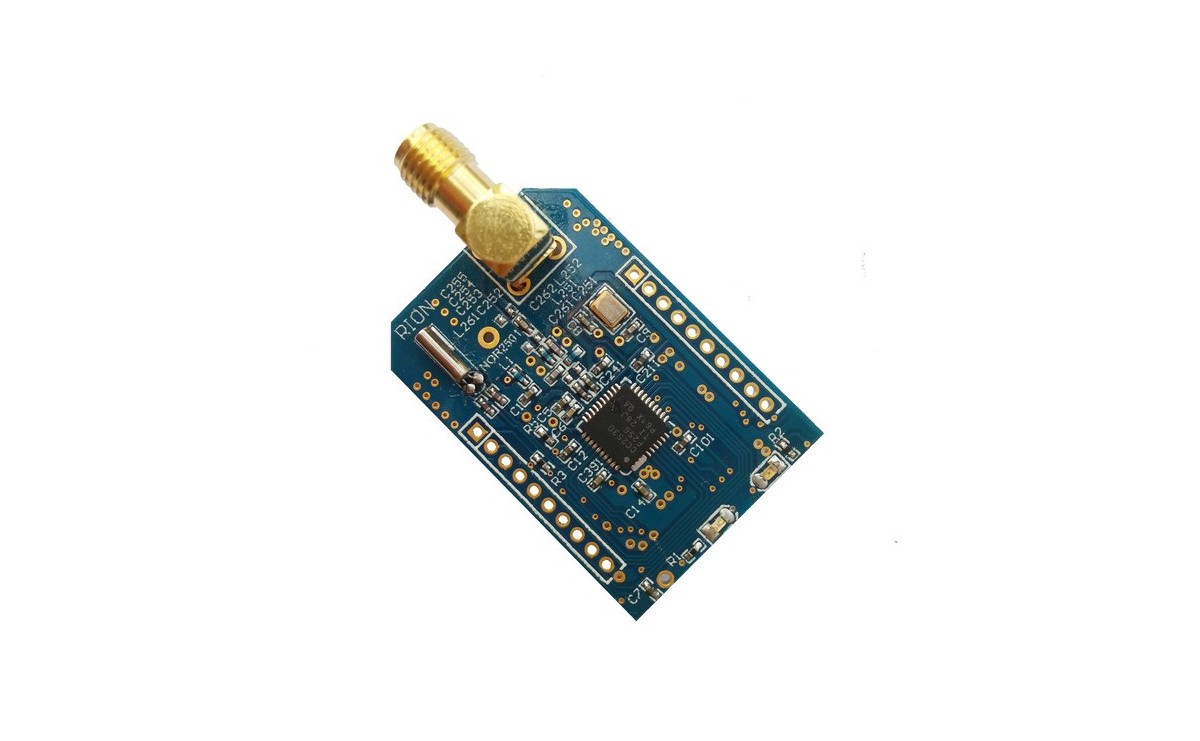

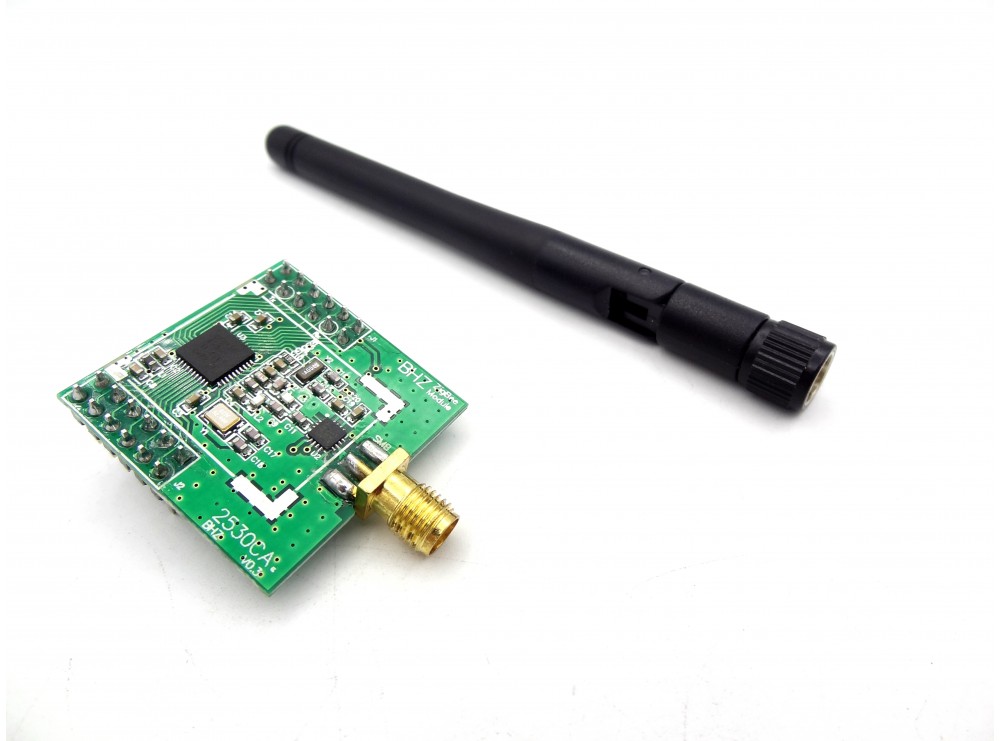

Zigbee CC2530+LNA+PA
وضعیت : ناموجودماژول Zigbee CC2530+LNA+PA تقویت شده
قیمت : 0 تومان
محصولات مشابه
مشخصات
ماژولها
| مشخصات فنی | یکی از پرکاربردترین ماژول های ZIGBEE سری CC2530 با تراشه تقویت کننده |
توضیحات بیشتر
Feature:
opening band, carrier frequency 2.4GHz.
air transfer rates up to 250kbps.
visual transmission distance 800 meters, to meet the demand for such smart home / industrial control, and many other customers;
Low power consumption, can be easily controlled to a low-power mode;

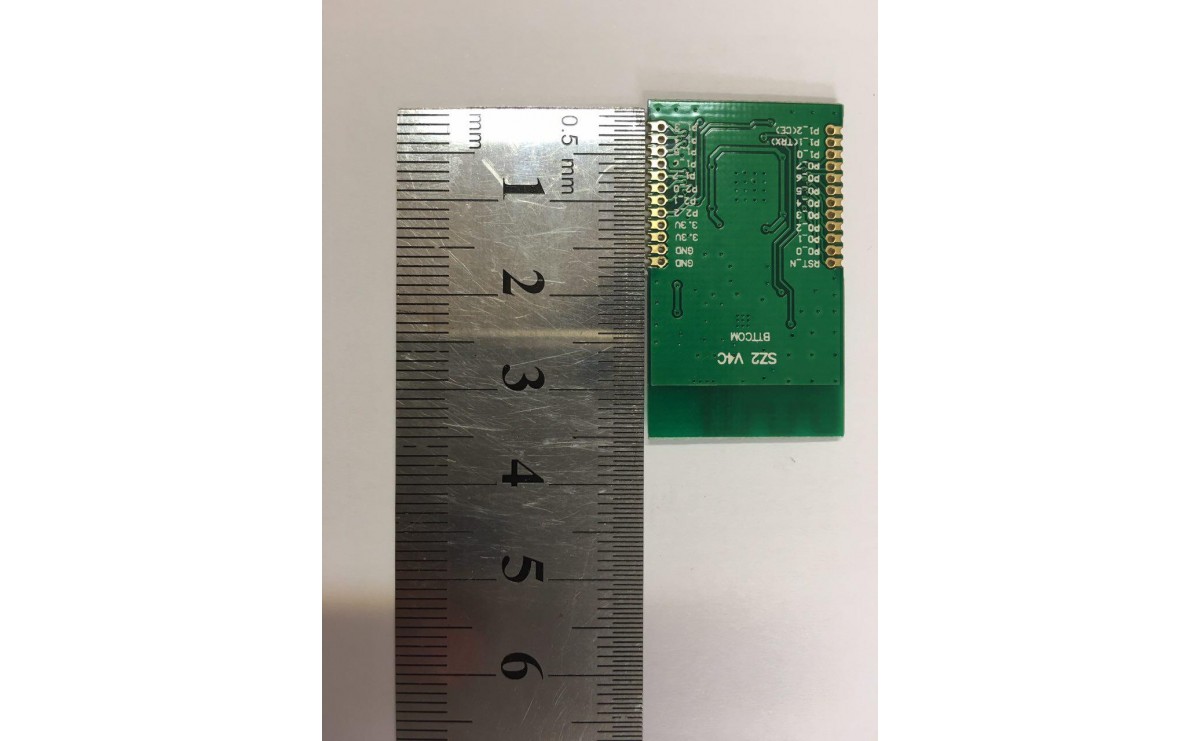

Small size, easy to embed into their products.
crystal are made of high-quality brand-name, all machine components SMD, high reliability.
provide the PCB antenna, IPEX antenna connector Antenna Tower and other connections.
The module is a secondary development of the module, the module itself is not software, but provides transparent transmission reference code.
Parameter:
CC2530 + RFX2401module Explanation
Sensitivity -106dBm
Output Power >+21dBm
Input Gain 12dB
Noise 3dB
Emission current <130mA
Receive current 37.5mA
Sleep Current 2uA
Operating Voltage 3.3V
Transmission distance 800m
Data Rate 250Kbps
The number of channels 16
Antenna PCBorIPEX
SMA antennaviaIPEXleads
Temperature Range -20℃~+80℃
