Description:

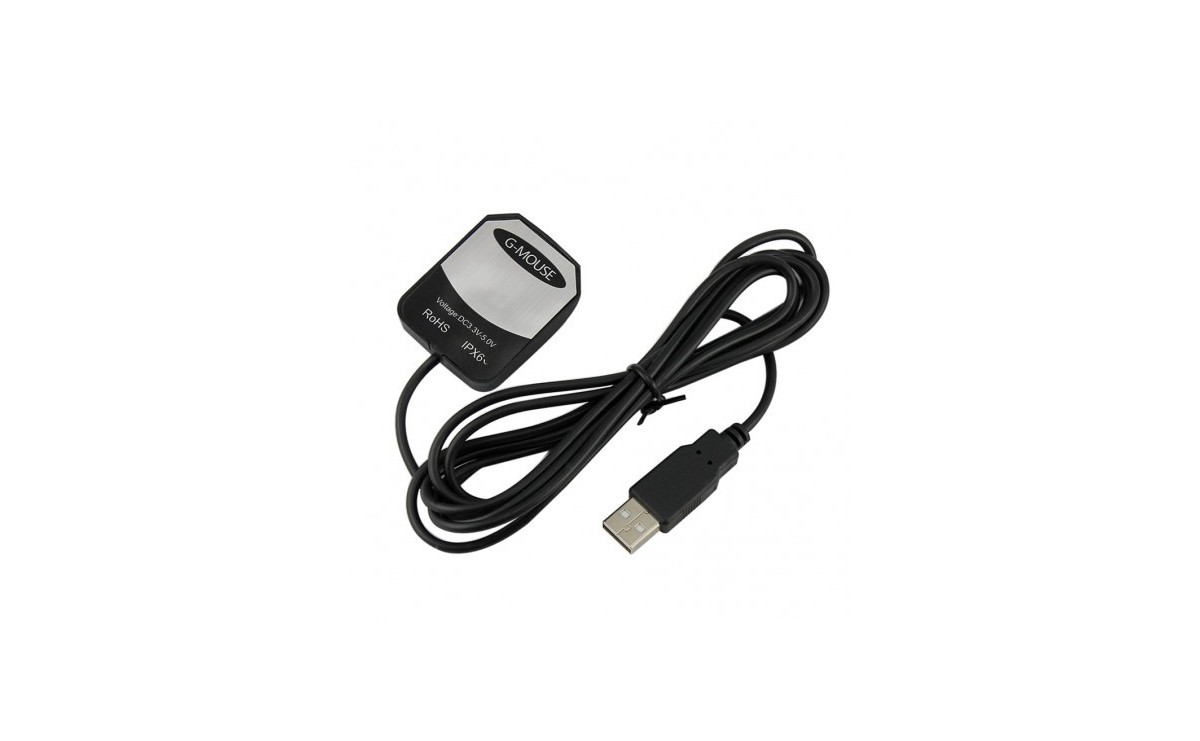

G-MOUSE satellite receiver ( hereinafter referred to as G-MOUSE), is a complete GPS receiver. Built-in satellite receiver antenna , and using the most advanced satellite receiver core, with a full range of features to meet the stringent requirements of industrial-grade positioning needs and personal use . Scope from car navigation , car alarm, bus-stop , Car DVR , car video surveillance , car DVD navigation , DVR, car audio, car monitors , car terminals , tracking, security systems, personal positioning , surveying agricultural uses and so on. Use only basic needs ( appropriate power supply and face the sky ) .
Application:
1.Vehicle tracing & Location base services
2.PDA/Notebook navigation
3.Car navigation
4.Marine navigation
5.Distance measurement
6.Sports and Recreation
7.Fleet Management
8.Vehicle Tracking
Feature:
1.50 channel GPS L1 frequency C/A Code.
2.Superior sensitivity up to -165dBm.
3.Built-in WAAS/EGNOS/MSAS Demodulator with out any additional hardware.
4.Low power consumption
5.For Car navigation,Marine navigation,Fleet managment,AVL,Personal navigation,Tracking System,and Mapping device application.
6.Water proof design
Supported operating systems:
Windows 8/7/Vista/XP/CE
Specification:
Model: LUYVK-162
Main chip: ublox
C / A code, 1.023MHz stream
Receive frequency: L1 [1575.42MHz]
Tracking Channels: 50
Support DGPS [WAAS, EGNOS and MSAS]
Positioning performance:
2D plane: 5m [average]
2D plane: 3.5m [average], there DGPS auxiliary.
Drift: <0.02m / s
Timing Accuracy: 1us
Reference coordinate system: WGS-84
Maximum altitude: 18,000 m
Maximum speed: 500m / s
Acceleration: <4g
Electrical properties:
Tracking sensitivity:-160dBm
Acquisition sensitivity:-146dBm
Cold start time: 32s [average]
Warm start: 32s [average]
Hot start time: 1s [average]
Recapture Time: 0.1s [average]
Temperature:
Operating:-40°~ 80°C
Storage:-40°~ 85°C
Humidity:Up to 95% non-condensing
Dimensions:

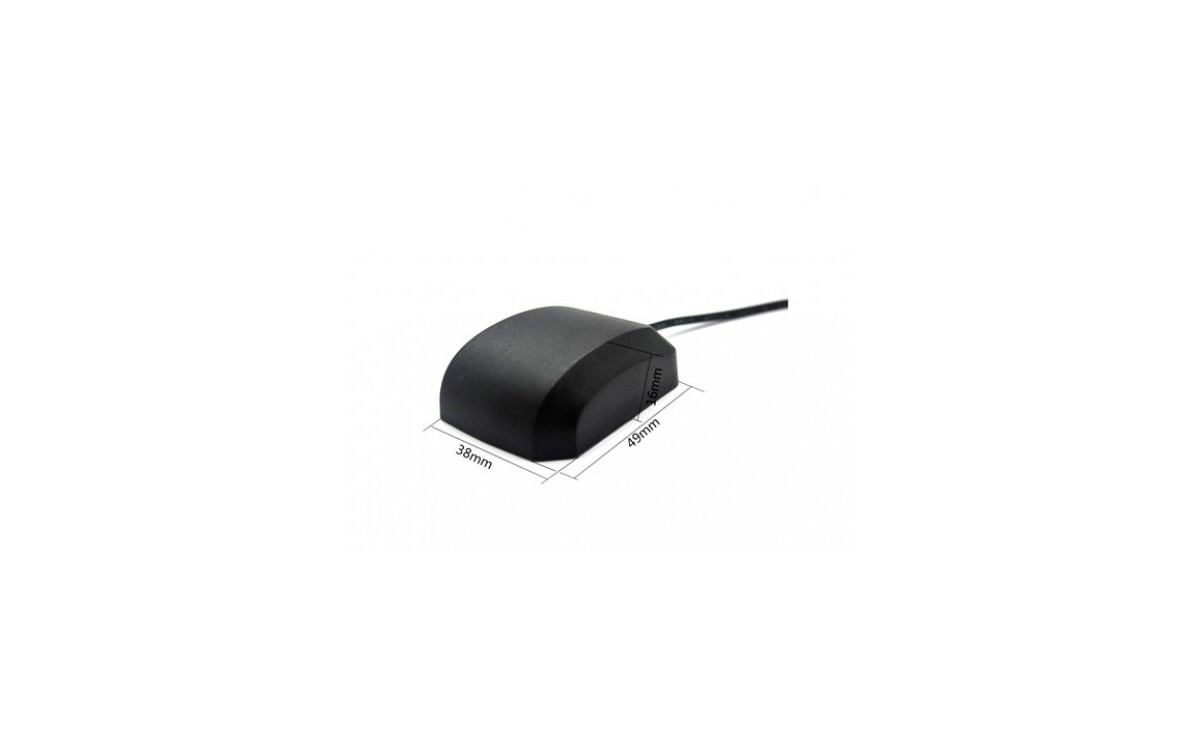

Dimension: 49 * 38 * 16mm
USB Cable length: 2m
Output:USB Date
Protocol:
GPS Protocol Default:
NMEA 0183
position, velocity, altitude, status and control
GPS Output Data : command GGA, GSA, GSV, RMC, VTG, GLL
GPS transfer rate : Auto-Baud
